How to Add/Change/Remove an Exam Panel in Exam Admin - Layout

How to Add/Change/Remove an Exam Panel in Exam Admin - Layout

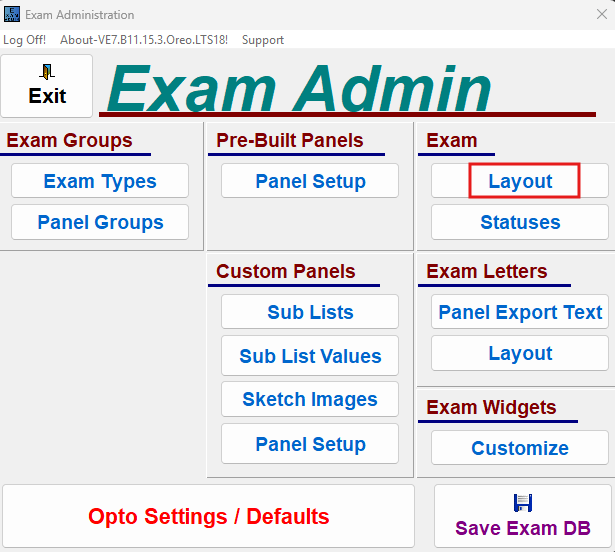

In exam admin -> exam layout:

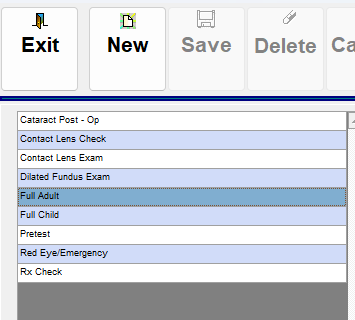

select exam layout you want to change -> click edit at top right

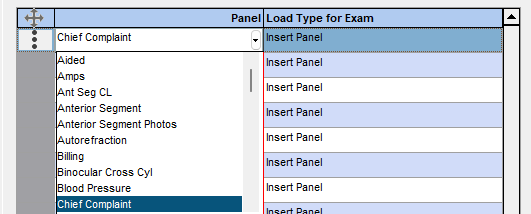

If you want to replace a panel: select it and then in the drop down in the panel column select the new panel

If you want to add a panel: select the panel below where you want the new panel and click the insert button on the right. If you want the panel to always be there leave the right column as "Insert Panel" if you only want to control where the panel would get inserted if added manually this can be changed to "Panel Marker"

If you want to remove a panel: select the panel and click the delete button on the right

If you want to adjust a panel's position: select the panel and then click up or down on the right as needed
When you are done click Save then Exit
Then click on Save Exam DB
